雷射設備
Laser Equipment
矽晶太陽能電池雷射設備
Silicon Solar Cell
Laser Equipment
TSR-HV 系列 | TSR-HV Series

TSR-HV 特性:
- 應用:太陽電池PERC,SE雷射製程
- 小型機台設計
- 單側上/下料
- AOI光學檢測破片率控制
- 高精度光學對位
- 產能9000 wph
- 可升級實現大尺寸晶片生產
TSR-HV Features:
- Application:Solar cell PERC, SE laser processes
- Compact machine design
- Single lane loading/unloading
- AOI wafer breakage rate control
- High precision optical alignment
- Throughput:9000 wph
- Upgradable to large wafer size production

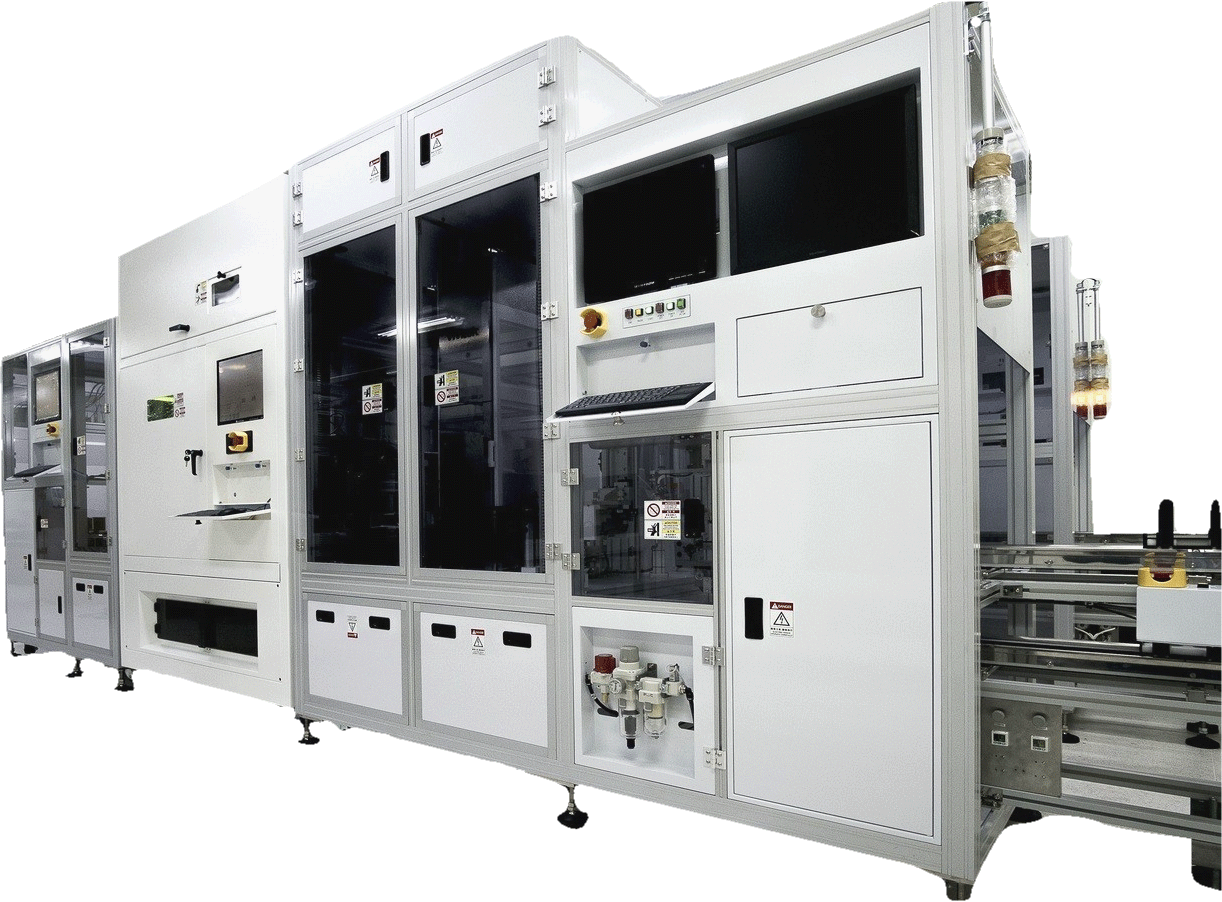

TDLP 系列 | TDLP Series

TDLP 特性:
- 應用:太陽電池PERC, SE雷射製程
- AOI光學檢測破片率控制
- 高精度光學對位
- 產能6000 wph
- 可升級實現大尺寸晶片生產
TDLP Features:
- Application:Solar cell PERC, SE laser processes
- AOI wafer breakage rate control
- High precision optical alignment
- Throughput:6000 wph
- Upgradable to large wafer size production
軟性印刷電路板雷射設備
Flexible PCB Laser Equipment
型號 FlexC | Model FlexC

FlexC 特性:
- 應用在軟性電路板
- 可切割Coverlay,FPC
- 不會有熱影響區
- 高產能
- 可自動化
FlexC Features:
- Application:Flexible Printed Circuit (FPC)
- For Coverlay, FPC Cutting
- HAZ free
- High throughput
- Automation compatible
被動元件導線架雷射設備
Passive Component Lead-Frame
Laser Equipment
型號 LME | Model LME

LME 特性:
- 應用在被動元件
- 導線架乾蝕刻
- 改善等效串聯電阻,Al晶片電容可靠度
- 捲對捲
- 可自動化高速生產
LME Features:
- Application:Passive Electronics
- Leadframe dry etching
- Improve ESR & reliability of Chip Al Capacitor
- Roll to Roll
- Automation compatible with high throughput
金屬3D積層製造雷射設備
Metal 3D Additive Manufacturing
Laser Equipment
型號 TSLM | Model TSLM

TSLM 特性:
- 應用在金屬3D列印
- 選擇性雷射鎔融 (粉末床鎔融)
- 機台尺寸:990 * 920 * 1800mm(依需求)
- 成形尺寸:Φ 150 * H 150mm(依需求)
- 鋪粉層厚:20 ~ 100um(可調整)
- 雷射功率:200 ~ 500W(依需求)
- 緻密度:>99.5%
- 金屬粉末種類:不鏽鋼(316、420J2)、麻時效鋼、鎳合金、鋁合金、鈦合金
- 適合產業:模具、工具、生醫、航太零件
TSLM Features:
- Application Metal 3D Printing
- Selective Laser Melting (Powder Bed Fusion)
- Machine Size : 990 * 920 * 1800mm
- Print Size : Φ 150 * H 150mm(Based on demand)
- Layer Thickness : 20 ~ 100um(Adjustable)
- Laser Power : 200 ~ 500W(Based on demand)
- Density : >99.5%
- Powder : Stainless steel(316、420J2), Maraging Steel, Ni718, AlSi10Mg, Ti6Al4V
- Molding, Tooling, Biomedical, Aerospace component
